Dabi Chroma Air
Brief Description :
- Dabi Atlante always bets on innovation, research and technology as means for leading the daily Odontology practicing to the highest and stringent levels. Several of its launches made and keep making history, surprising dental surgeons with solutions and equipment in the segments of offices, diagnostic imaging and implants, combining precision, comfort, functionality and biosecurity
- • Chair for the accommodation of the patient during the dental treatment, with automatic movements, ambidextrous (serves right and left handed), driven by low voltage motor-reducer providing low noise level
- With a fully anatomical design and designed to provide greater productivity to the dentist.
Color Options :

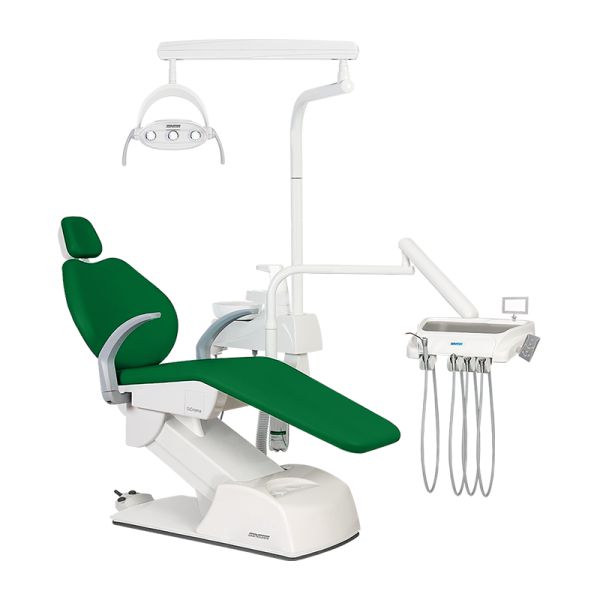

Dark Green
Gold

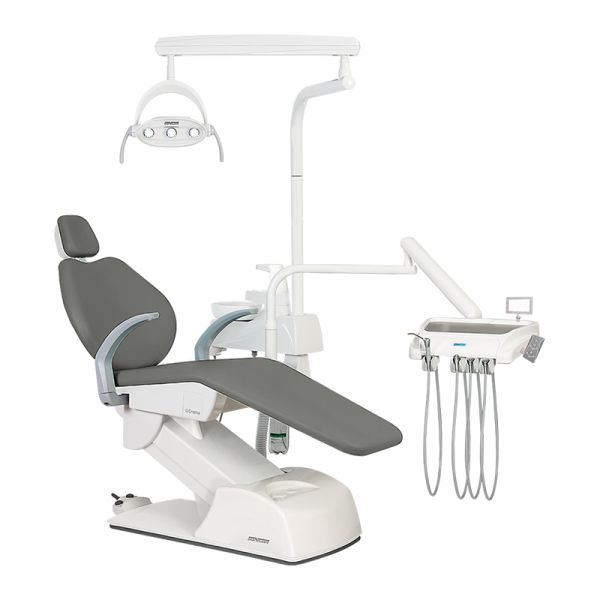

Gray
Nut

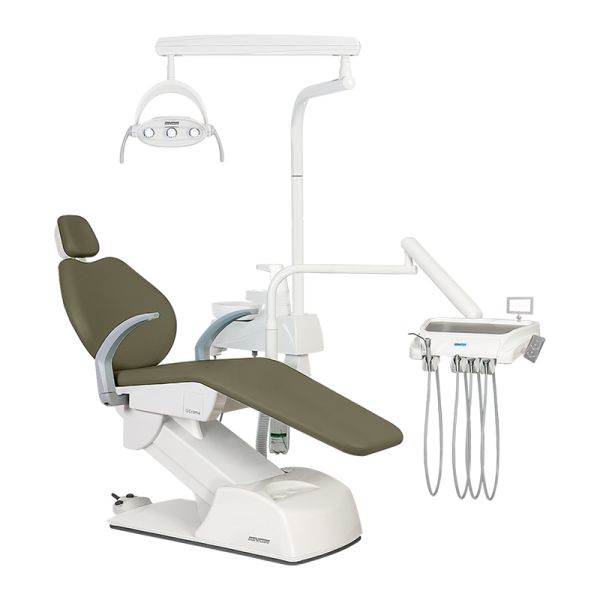

Agate

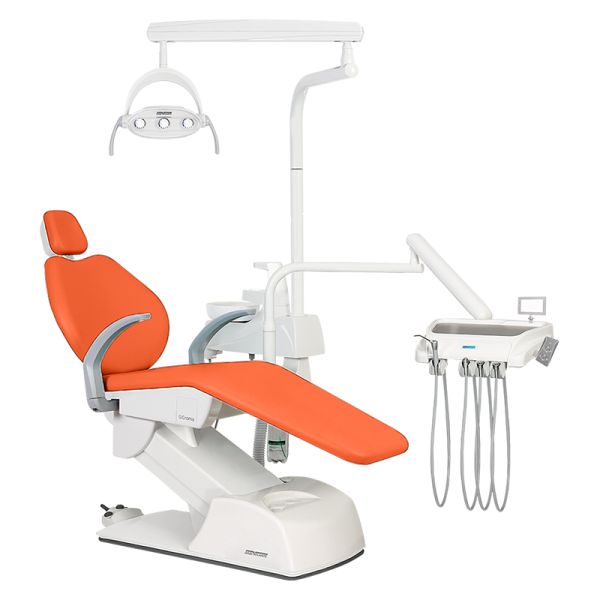

Orange

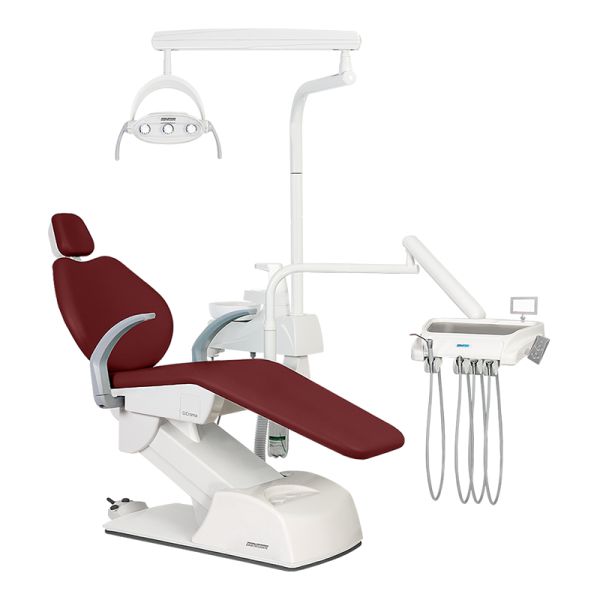

Granet

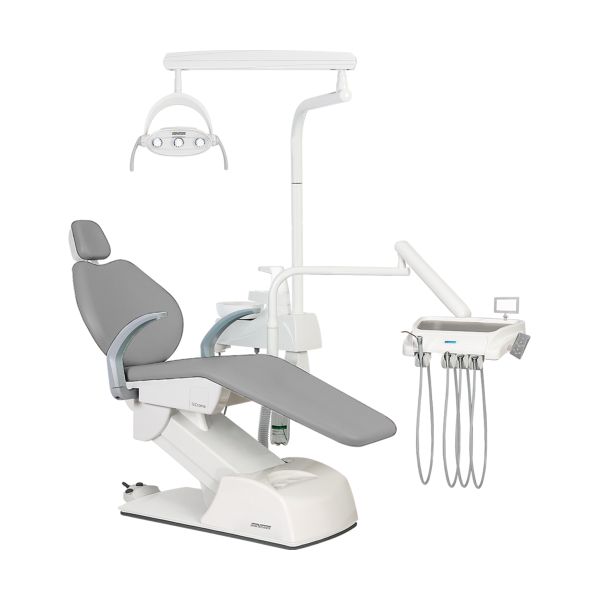

Silver
Navy Blue

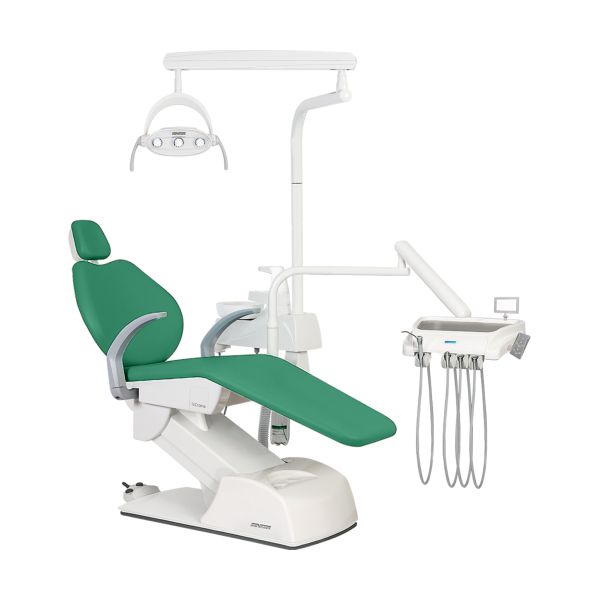

Light Green
Sky Blue
Desert Rose
Quality Standards maintained with Warranty (2+1) Year
Fina a local representative based on your Pincode
- Structure constructed in solid steel, with anticorrosive treatment , with epoxy paint Powered with High Quality BOSCH Motor.
- Chair for Ambidextrous (serves right and left handed)
- Base with ergonomic design, anti-slip edge, no fixing on the floor
- Joystick control pedal with 3 working programs with automatic return to zero postion
- Electromechanical lifting system Driven by low voltage BOSCH motor
- Support arm for the patient folding 90°
- Curved backrest, which besides providing comfort to the patient, allows greater approach to the operative field
- Perfect stability, it does not need to be fixed to the floor
- It has an integrated connection box
- Product Rating: According to standard IEC 60601-1
- Power: 127/220 V ~ (internally selectable)
- Frequency: 50/60 Hz
- Type of protection against electric shock: Class I Equipment
- Degree of protection against electric shock: Type B Applied Part
- Operating mode: Continuous, Intermittent load – 1min. work and 4 min. rest
- Protection against harmful ingress of water:
- IPX 0 – Every chair for exams, except for footswitch
- IPx1 – Pedal command
- Input power: 200VA
- Protection Fuses: F1 and F2 (127 or 220V ~) = 5A – delayed action
- Lifting capacity: 200 kg distributed load (weight of the patient and equipment + accessories)
Delivery Unit
- With up to 5 terminal
- Arm with pneumatic lock
- 01 triple syringe.
- 02 terminal for Airotor.
- 01 terminal for Airmotor
- Produced in Injected ABS
- Progressive Pedal, Triple syringe
- Removable stainless steel top, Bilateral Handle
Water Unit
- Produced in Injected ABS
- Spittoon ; Deep, removable and with drain and filter for solids retention
- Water flow regulation system
- Translucent reservoirs of 1000 ml for
- Water unit movies 90º folding tank
- Proximity Sensor- Sensor that automatically triggers the water flow of water in the spout
Dental Light
- Optical system Sensor Operated 3 LEDs
- 3- Intensities: 15,000, 25,000 and 35,000 LUX (with variation of +-10%).
